Cisco CCNA Exploration 4.0 Chapter1 PT 1.7.1

Paket Tracer Exploration 1.7.1

1.7.1: Skills Integration Challenge-Introduction to Packet Tracer

Topology Diagram:

Nearly complete logical topology provided as starting point.

Device	Interface	IP Address	Subnet Mask	Default Gateway
R1-ISP	Fa0/0	192.168.254.253	255.255.255.0	N/A
	S0/0/0	10.10.10.6	255.255.255.252
R2-Central	Fa0/0	172.16.255.254	255.255.0.0	N/A
	S0/0/0	10.10.10.5	255.255.255.252
S1-Central	VLAN 1	172.16.254.1	255.255.0.0	172.16.255.254
PC 1A	NIC	172.16.1.1	255.255.0.0	172.16.255.254
PC 1B	NIC	172.16.1.2	255.255.0.0	172.16.255.254
Eagle Server	NIC	192.168.254.254	255.255.255.0	192.168.254.253

Learning Objectives:

• Explore Packet Tracer Real-time mode
• Explore the Logical Workspace
• Explore Packet Tracer operation
• Connect devices
• Examine a device configuration
• Review the standard lab setup
• Overview of the devices

Background:

Throughout the course, you will be using a standard lab setup created from actual PCs, servers, routers, and switches to learn networking concepts. This method provides widest range of features and the most realistic experience. Since equipment and time are limited, this experience can be supplemented by a simulated environment. The simulator that is used in this course is Packet Tracer. Packet Tracer provides a rich set of protocols, equipment, and features but only a fraction of what is possible with real equipment. Packet Tracer is a supplement to not a replacement for experience with real equipment. You are encouraged to compare the results obtained from Packet Tracer network models with the behavior of real equipment. You are also encouraged to examine the Help files built into Packet Tracer, which include an extensive "My First PT Lab", tutorials, and information on the strengths and limitations of using Packet Tracer to model networks.

This activity will provide an opportunity to explore the standard lab setup using Packet Tracer simulator. Packet Tracer has two file formats it can create: .pkt files (network simulation model files) and .pka files (activity files for practice). When you create your own networks in Packet Tracer, or modify existing files from your instructor or your peers, you will often use the .pkt file format. When you launched this activity from the curriculum, these instructions appeared. They are the result of the .pka, Packet Tracer activity file format. At the bottom of these instructions are two buttons: Check Results (which gives you feedback on how much of the activity you have completed) and Reset Activity (which starts the activity over, if you want to clear your work or gain more practice).

Task 1: Explore the PT interface

Step 1 – Logical Workplace

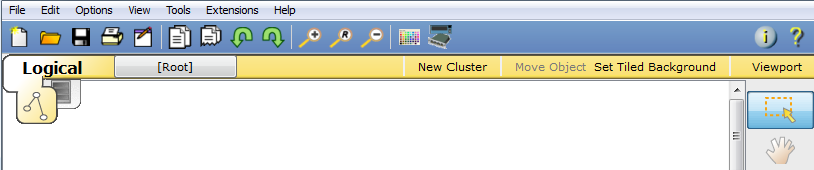

When Packet Tracer starts, it presents a logical view of the network in real-time mode. The main part of the PT interface is the Logical Workplace. This is the large area where devices are placed and connected.

Step 2 – Symbols Navigation

The lower left portion of the PT interface, below the yellow bar, is the portion of the interface that you use to select and place devices into the logical workplace. The first box in the lower left contains symbols that represent groups of devices. As you move the mouse pointer over these symbols, the name of the group appears in the text box in the center. When you click on one of these symbols, the specific devices in the group appear in the box to the right. As you point to the specific devices, a description of the device appears in the text box below the specific devices. Click on each of the groups and study the various devices that are available and their symbols.

Task 2: Explore PT operations

Step 1 – Connect the devices using auto connect
Click on the connections group symbol. The specific connection symbols provide different cable types that can be used to connect devices. The first specific type, the gold lightning bolt, will automatically select the connection type based on the interfaces available on the devices. When you click on this symbol, the pointer resembles a cable connector.
To connect two devices click the auto connection symbol, click the first device, and then click the second device. Using the auto connection symbol, make the following connection:

• Connect the Eagle Server to the R1-ISP router.
• Connect PC-PT 1A to the S1-Central switch.


Step 2 - Examine device configuration with a mouse over

Move your mouse over the devices found in the logical workplace. As you move the mouse pointer over these symbols the device configurations appears in a text box.

1. A router will display port configuration information including IP address, port status, and MAC address.
2. A server will display IP address, MAC address, and Gateway information
3. A switch will display port configuration information including IP address, MAC address, port status, and VLAN membership.
4. A PC will display IP address, MAC address, and Gateway information.

Step 3 - Examine device configuration

Left mouse click on each device type found in the logical workplace to view the device configuration.

1. Router and Switch devices contain three tabs. These tabs are Physical, Config, and CLI (Command Line Interface).
• The Physical tab displays the physical components of the device such as modules. New modules can also be added using this tab.
• The Config tab displays the general configuration information such as device name.
• The CLI tab allows the user to configure the device using the command line interface.

2.     Server and Hub devices contain two tabs. These tabs are Physical and Config.

o    The Physical tab displays components of the device such as ports. New modules can also be added using this tab.

o    The Config tab displays the general information such as device name.

3.     PC devices contain three tabs. These tabs are Physical, Config, and Desktop.

o    The Physical tab displays components of the device. New modules can also be added using this tab.

o    The Config tab displays the device name, IP address, subnet mask, DNS, and gateway information.

o    The Desktop tab allows the user to configure, IP address, subnet mask, default gateway, DNS server, dial-up, and wireless. A terminal emulator, the command prompt and a simulated web browser can also be accessed using the Desktop tab.

Task 3: Review the standard lab setup

Step 1 –Overview of the devices

The standard lab setup will consist of two routers, one switch, one server, and two PCs. Each of these devices will be pre-configured with such information as device names, IP addresses, gateways, and connections.

Reflection:

You have completed your first Packet Tracer Lab. If you have not done so already, you are encouraged to obtain Packet Tracer from your instructor or Academy Connection.
