Cisco CCNA Exploration 4.0 Chapter2 PT 2.4.8


Activity 2.4.8: Use of the TCP/IP Protocols and the OSI Model in Packet Tracer

Learning Objectives

  • Explore how PT uses the OSI Model and TCP/IP Protocols
  • Examine Packet Processing and Contents

Introduction:

In Packet Tracer simulation mode, detailed information about packets and how they are processed by networking devices may be viewed. Common TCP/IP Protocols are modeled in Packet Tracer, including DNS, HTTP, TFTP, DHCP, Telnet, TCP, UDP, ICMP, and IP. How these protocols are used by networking devices in creating and processing packets is displayed, in Packet Tracer, using a representation of the OSI Model. The term protocol data unit, or PDU, is a generic description of what are known as segments at the transport layer, packets at the network layer, and frames at the data link layer.

Task 1: Explore the PT interface

Step 1. Examine the Help Files and Tutorials

From the pull down menu, choose Help->Contents. A web page will open. From the left frame, choose Operating Modes->Simulation Mode. If not already familiar, read about simulation mode.
faldy-computer.blogspot.com

Step 2. Switching from Realtime to Simulation Mode

In the far lower right of the PT interface is the toggle between Realtime and Simulation mode. PT always starts in Realtime mode, in which networking protocols operate with realistic timings. However, a powerful feature of Packet Tracer allows the user to "stop time" by switching to Simulation mode. In Simulation mode, packets are displayed as animated envelopes, time is event driven, and the user can step through networking events. Click the Simulation mode icon to switch from Realtime mode to Simulation mode.


Task 2: Examine Packet Contents and Processing

Step 1. Creating a Packet and Accessing the PDU Information Window

Click the Web Client PC. Choose the Desktop tab. Open theWeb Browser. Enter the IP address of the Web Server into the browser, 192.168.1.254.

faldy-computer.blogspot.com

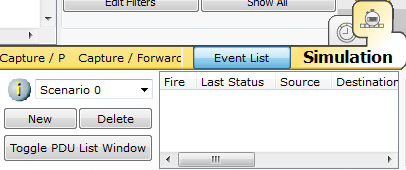

Clicking Go will initiate a web server request. Minimize the Web Client configuration window. Since time in simulation is event driven, you must use the Capture/Forward button to display network events. Two packets appear in the event list, one of which has an eye next to it. An eye next to a packet means it is displayed as an envelope on the logical topology. Find the first packet in the Event List, and click the colored square in the Info column.

faldy-computer.blogspot.com

Step 2. Investigating device algorithms in the OSI Modelview
When you click the Info square for a packet in the event list, or if you click a packet envelope displayed on the logical topology, thePDU Information window opens.

faldy-computer.blogspot.com

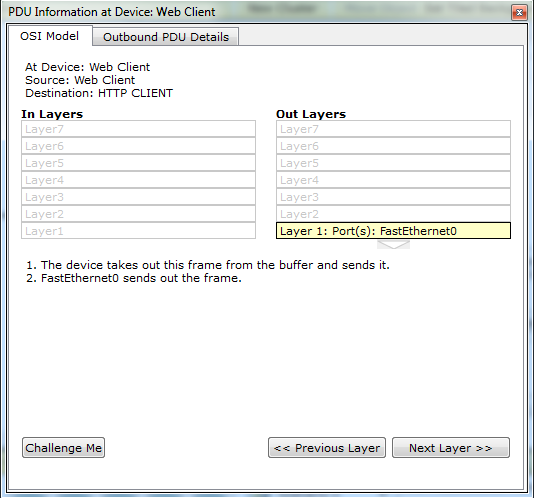

 The OSI model organizes this window. In the case of the first packet we are viewing, notice the HTTP request (at Layer 7) is then encapsulated, successively, at Layers 4, 3, 2, and 1. If you click through these layers, the algorithm used by the device (in this case, the PC) is displayed. View what is going on at each layer--this will be the subject of much of the rest of the course.

Step 3. Inbound and Outbound PDUs

When opening the PDU Information window, the default is the OSI Model view. Now click the Outbound PDU Details tab.
faldy-computer.blogspot.com

Scroll down to the bottom of this window.
 faldy-computer.blogspot.com
There you will see that HTTP (the web page request that started this series of events) is encapsulated as data in a TCP segment, which in turn is encapsulated in an IP packet, which in turn is encapsulated in an Ethernet frame, which in turn is transmitted as bits on the medium.
If a device is the first device involved in a series of events, packets at that device will only have an Outbound PDU Details tab; if a device is the last device in a series of events, packets at that device will have only an Inbound PDU Details tab.

faldy-computer.blogspot.com
In general, you will see both Outbound and Inbound PDU details, which give details about how Packet Tracer is modeling that device.

Step 4. Packet tracing: animations of packet flow

The first time through a packet animation, you are actually capturing the packets, as in a protocol sniffer. Hence, theCapture/Forward button means "Capture" one set of events at a time. Step through the web page request. Note that you are only displaying HTTP-related packets; but other protocols like TCP and ARP also have packets that are not being displayed. At any time in your packet capture, you can open the PDU Informationwindow. Run through the entire animation until the "No More Events" message is reached. Experiment with this packet tracing process -- running the animation again, examining packets, predicting what will happen next, and investigating your predictions.

Cisco CCNA Exploration 4.0 Chapter1 PT 1.7.1

Paket Tracer Exploration 1.7.1


1.7.1: Skills Integration Challenge-Introduction to Packet Tracer
Topology Diagram:
Nearly complete logical topology provided as starting point.
Device
Interface
IP Address
Subnet Mask
Default Gateway
R1-ISP
Fa0/0
192.168.254.253
255.255.255.0
N/A
S0/0/0
10.10.10.6
255.255.255.252
R2-Central
Fa0/0
172.16.255.254
255.255.0.0
N/A
S0/0/0
10.10.10.5
255.255.255.252
S1-Central
VLAN 1
172.16.254.1
255.255.0.0
172.16.255.254
PC 1A
NIC
172.16.1.1
255.255.0.0
172.16.255.254
PC 1B
NIC
172.16.1.2
255.255.0.0
172.16.255.254
Eagle Server
NIC
192.168.254.254
255.255.255.0
192.168.254.253

Learning Objectives:
  • Explore Packet Tracer Real-time mode
  • Explore the Logical Workspace
  • Explore Packet Tracer operation
  • Connect devices
  • Examine a device configuration
  • Review the standard lab setup
  • Overview of the devices

Cisco CCNA Exploration 4.0 Chapter2 PT 2.2.4

Paket Tracer Exploration 2.2.4

Activity 2.2.4: Network Representations

Addressing Table:

This Lab does not include an Addressing Table.

Learning Objectives:


  • Explore the PT interface
  • Locate the key components used to place device symbols in the logical workplace
  • Examine the devices that can be placed in the logical workplace and their symbols
  • Place and connect devices
  • Add device symbols to the logical workplace
  • Connecting devices in the logical workplace using auto connection

Introduction:

Packet Tracer is a network simulator that allows you create a simulated network, configure the devices in the network, test the network, and examine the traffic in the network. The first step in creating a simulated network in Packet Tracer is to place the devices in the logical workplace and connect them together. Packet Tracer uses the same symbols as are used throughout the curriculum. Match the icons in PT with the symbols in the symbol list.

Task 1: Explore the PT interface


Step 1. Logical Workspace

When Packet Tracer starts, it presents a logical view of the network in Realtime mode. The main part of the PT interface is the Logical Workplace. This is the large blank area where devices can be placed and connected.

  mr3

Step 2. Device Symbols


The lower left portion of the PT interface, below the yellow bar, is the portion of the interface that you use to select and place devices into the logical workplace. The first box in the lower left contains symbols that represent groups of devices. As you move the mouse pointer over these symbols, the name of the group appears in the text box in the center. When you click on one of these symbols, the specific devices in the group appear in the box to the right. As you point to the specific devices, a description of the device appears in the text box below the specific devices. Click on each of the groups and study the various devices that are available and their symbols.

  mr3


Task 2: Add devices to the logical workplace


Step 1. Selecting and Placing Devices

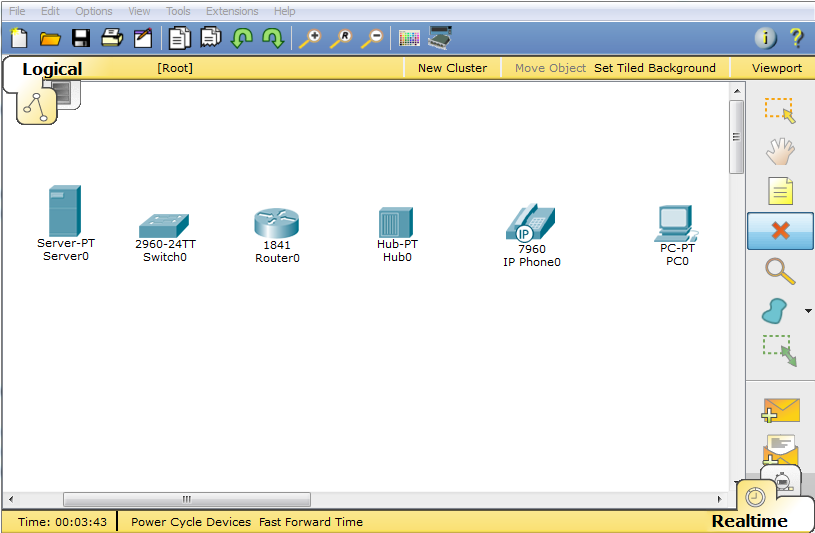

To add a device to the logical workplace click on the specific device symbol, point to where you want to place the device in the logical workplace (the pointer becomes a crosshair), and click. Locate and place the following devices in a horizontal row across the logical workplace, with about an inch between them, in order from left to right:

  • a server
  • a 2960 switch
  • an 1841 router
  • a hub
  • an IP phone
  • a PC

  mr3

 Step 2. Connect the devices using auto connect

Click on the connections group symbol. The specific connection symbols provide different cable types that can be used to connect devices. The first specific type, the gold lightning bolt, will automatically select the connection type based on the interfaces available on the devices. When you click on this symbol, the pointer resembles a cable connector. To connect two devices click the auto connection symbol, click the first device, and then click the second device. Starting with the server, connect each device to the device to its right using the auto connection symbol.


  mr3

 Step 3. Packet Tracer Scoring
Packet Tracer activities can be configured to score your work. To check your configuration, click the Check Results button below.

At the end of this task your completion rate should be 100%.


 mr3
